← Back to products
Categories: Classic tokens

Photos are for illustration only and are not contractual.

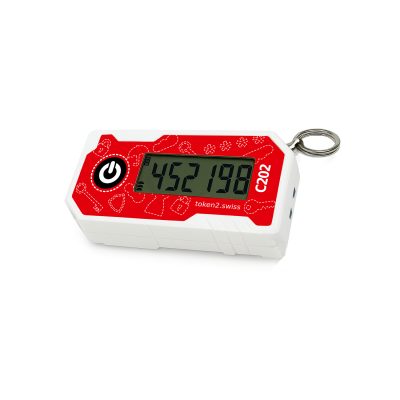

Token2 C202 classic TOTP hardware token with SHA1 hash

Part no: C202 · T2-1
$18.36
incl. 0% VAT (US) · $18.36 excl. VAT
Volume pricing
1+ $18.36
2+ $18.18 −1%
5+ $18.00 −2%
10+ $17.81 −3%
50+ $16.70 −9.09%
100+ $15.58 −15.15%

Need a larger quantity? You can request a quote at checkout for better volume pricing.

In stock
Datasheet

Specifications:

  • Built-in Button, 6 Character LCD Screen
  • Security Algorithm: TOTP as per RFC6238 with SHA1 hash
  • OTP Length: 6 digits
  • OTP Time interval: 30 seconds
  • Dimensions: 49.8 x 26 x 8.25mm
  • Water resistance: IP67
  • Secret hash: random - factory programmed
  • Hardware Certification: RoHS Compliant
  • Operating Temperature:  -10°C .. 50°C
  • Tamper Evident / Tamper Protection
  • Battery Type: Standard Lithium Battery
  • Battery Lifetime:   5-7 Years (depending on usage)

Obtaining the seeds/secrets/CSV files for TOTP tokens

The process of requesting factory-set seeds for Token2 hardware tokens is described here.

Independent Compliance Check

  • RFC6238 compliance confirmed by CertX, the first swiss accredited certification body for product certification in the scope of industrial cybersecurity and functional safety.

    Compliance Check report by CertX

Time drift and other parameters
This is a classic TOTP token with factory-set seeds. Parameters such as the hash algorithm (SHA-1 or SHA-256), seeds, or internal clock cannot be changed. It can only be used with systems that allow seed import and implement RFC-compliant time drift compensation.

Specifications

Product identification

Part no C202
T2 code T2-1

General

Form factor Key-fob token

Connectivity

USB-C No
NFC No

OTP

OTP protocols TOTP
TOTP Yes
Hash algorithm SHA-1
OTP digits 6
Time step 30s
Programmable No

Physical

Water resistance IP67
Battery life 5-7 Years (depending on usage)
Battery type Standard Lithium Battery
Operating temperature -10°C .. 50°C
Hardware certification RoHS Compliant

Dimensions

Dimensions 49.8 x 26 x 8.25mm
