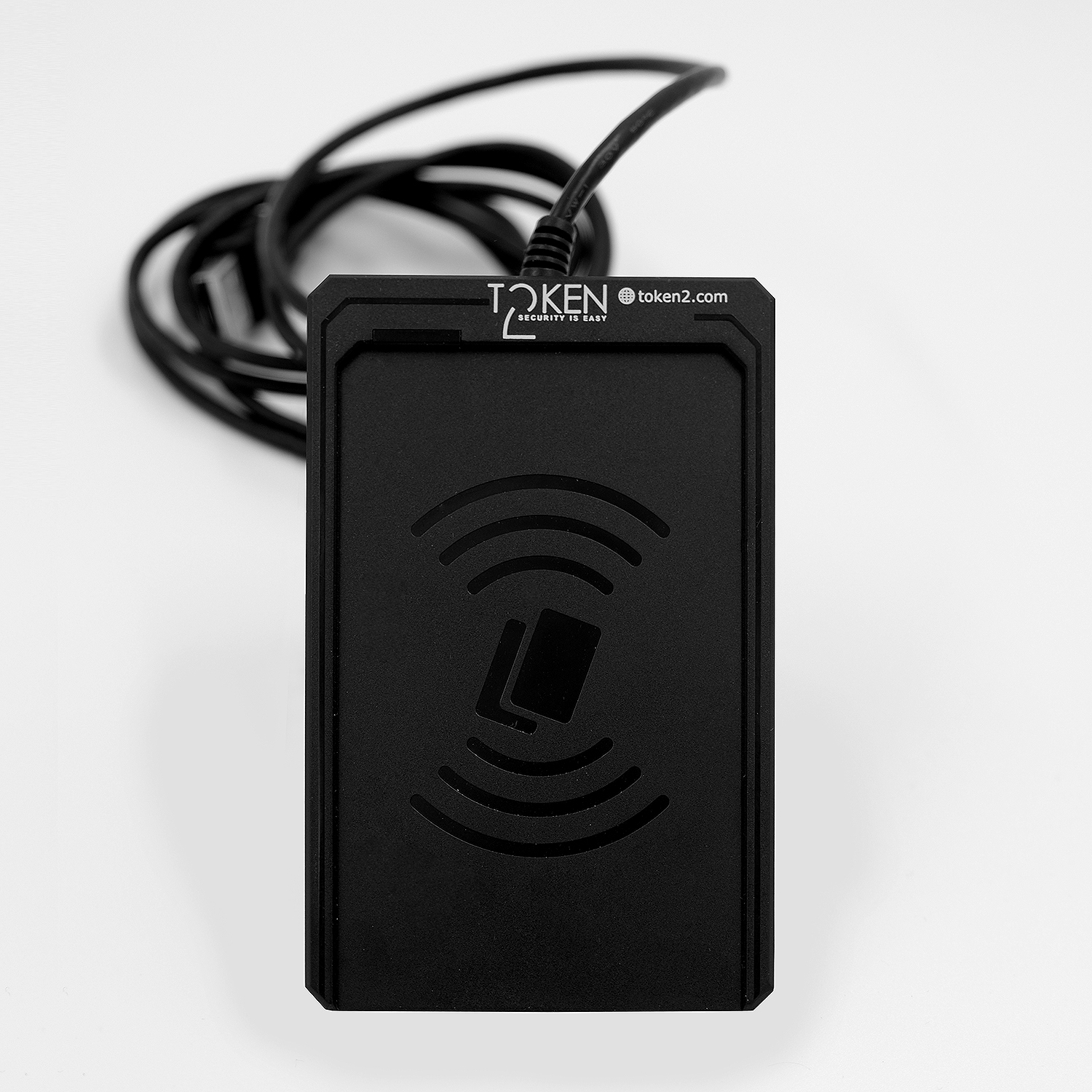

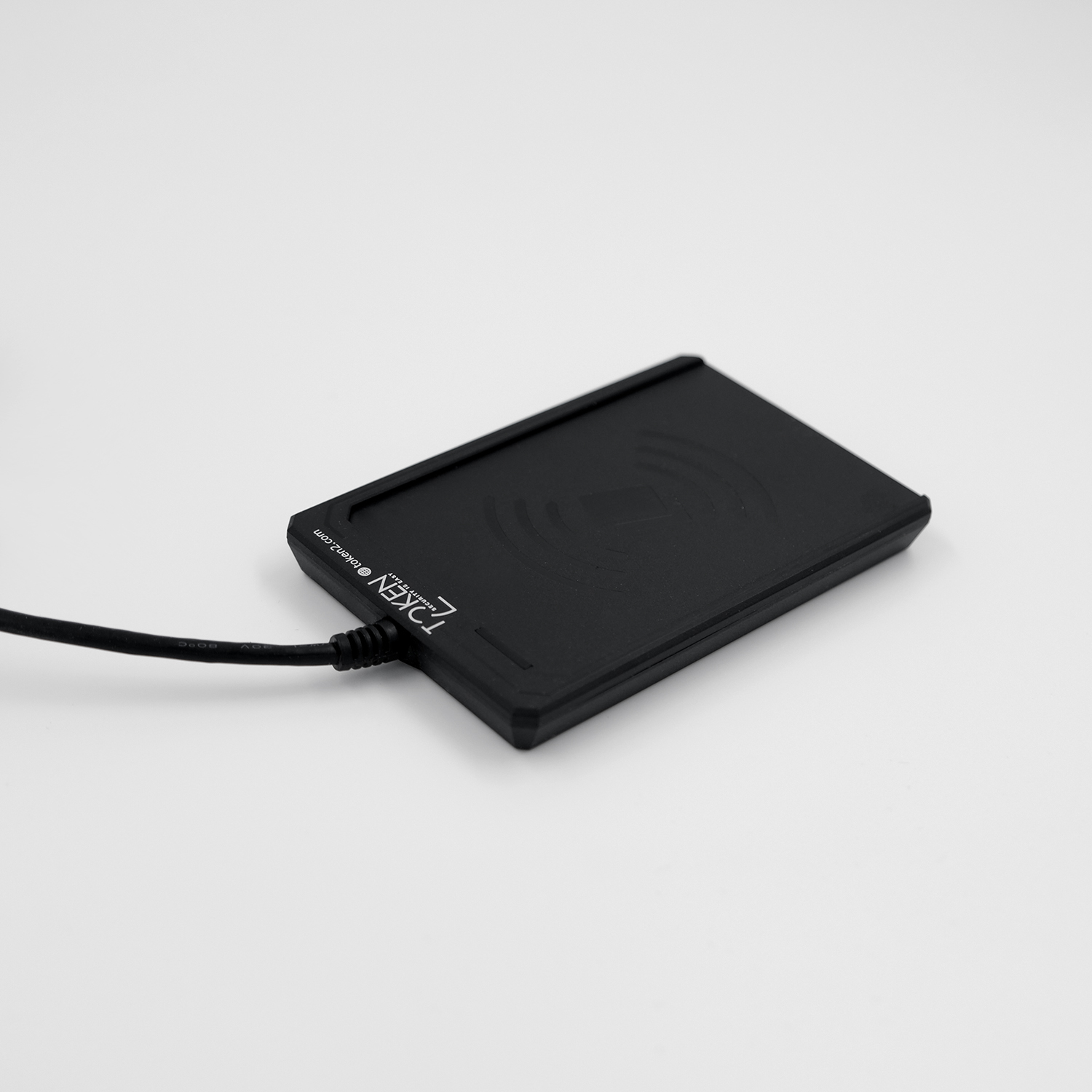

Token2 Dual Reader - USB-A and USB-C - NFC and Smart Card Reader

  shipping costs will be calculated at the checkout page

Token2 NFC Dual Reader is a dual-interface smart card reader designed for secure authentication, identity verification, and NFC applications. It supports both contact and contactless smart cards and is suitable for finance, e-government, telecommunications, network security, and other high-security environments.

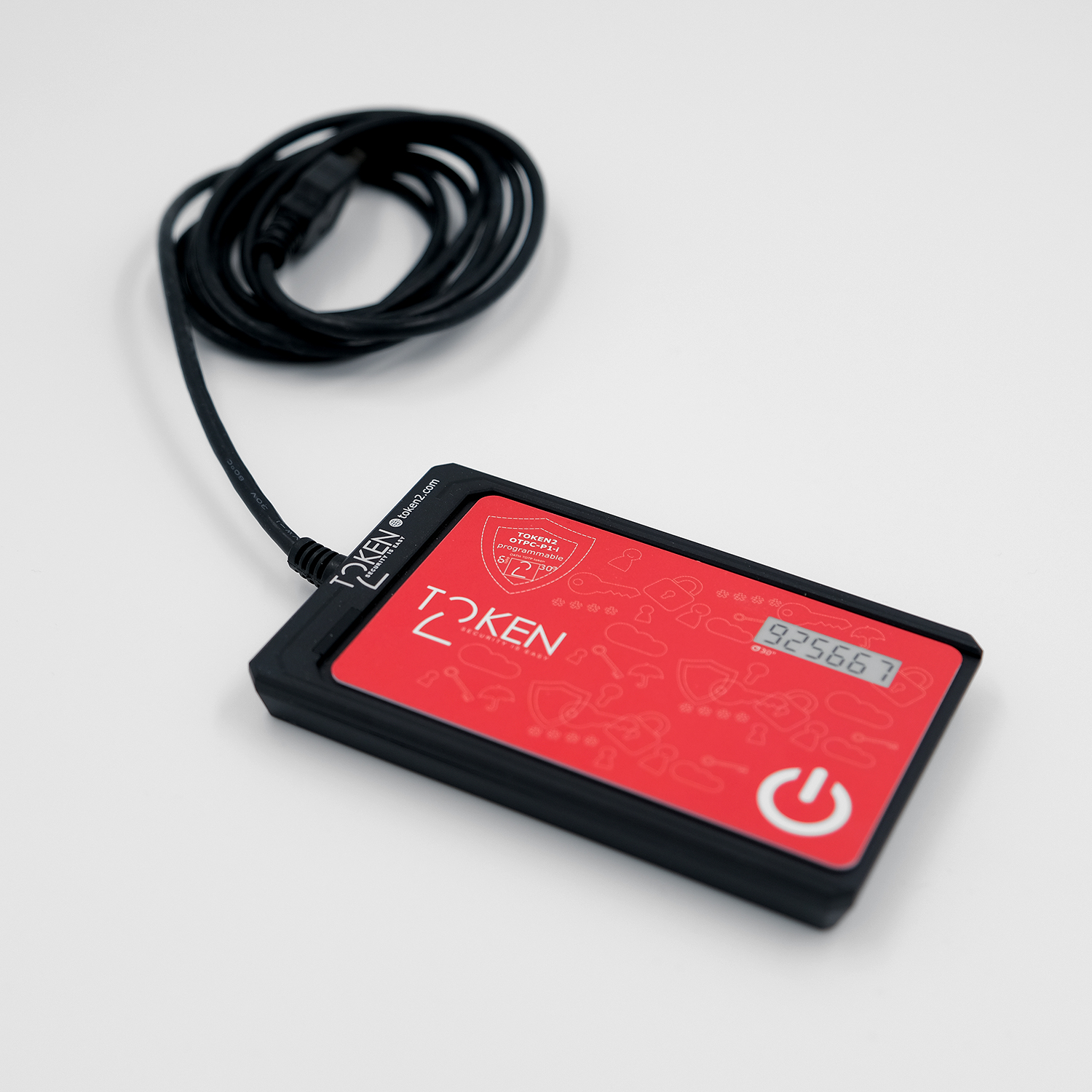

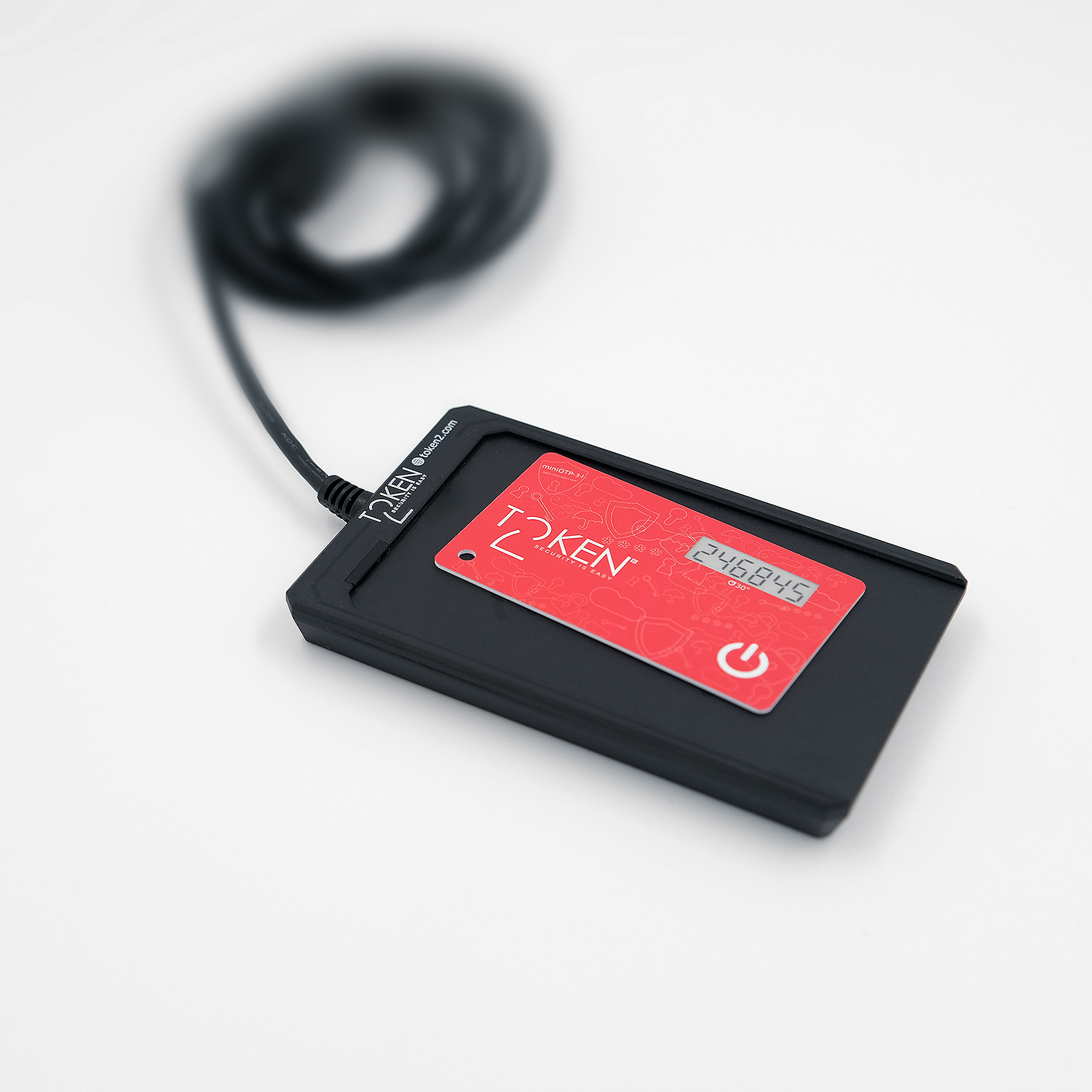

It can be used with Token2 NFC-enabled FIDO2 security keys and smart cards, as well as for programming and managing Token2 NFC-programmable devices.

Product Features
  • Full-speed USB 2.0 interface
  • Compliant with PC/SC and CCID protocols
  • Supports ISO 7816 Class A / B / C contact smart cards (T=0)
  • Supports ISO 14443 Type A and Type B contactless smart cards
Technical Specifications
Model Token2 NFC Dual Reader

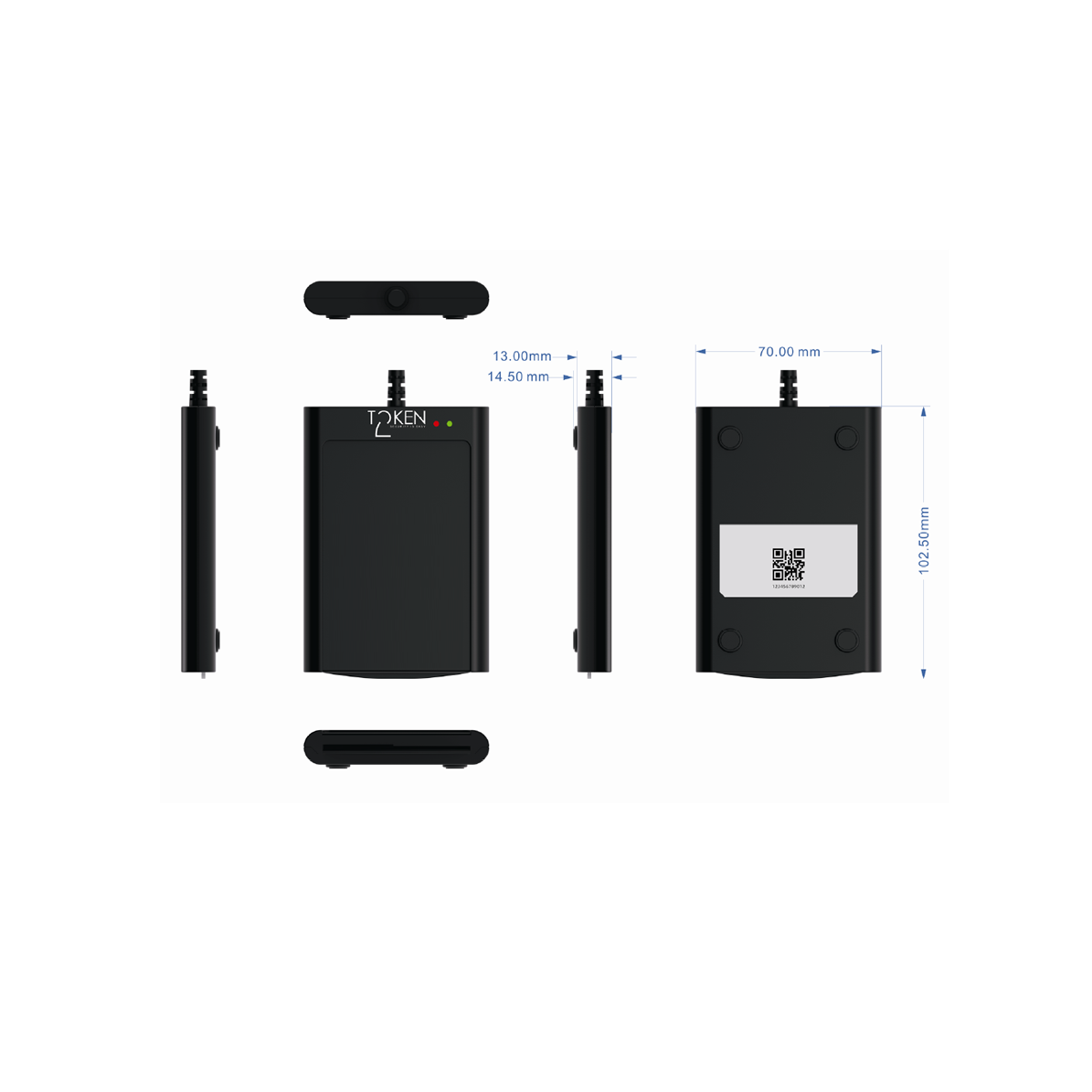

Size 102.5 × 70 × 14.5 mm
Power USB (5V)
Current < 200mA
Material Polycarbonate
Indicators 2 LEDs (Power / Data)

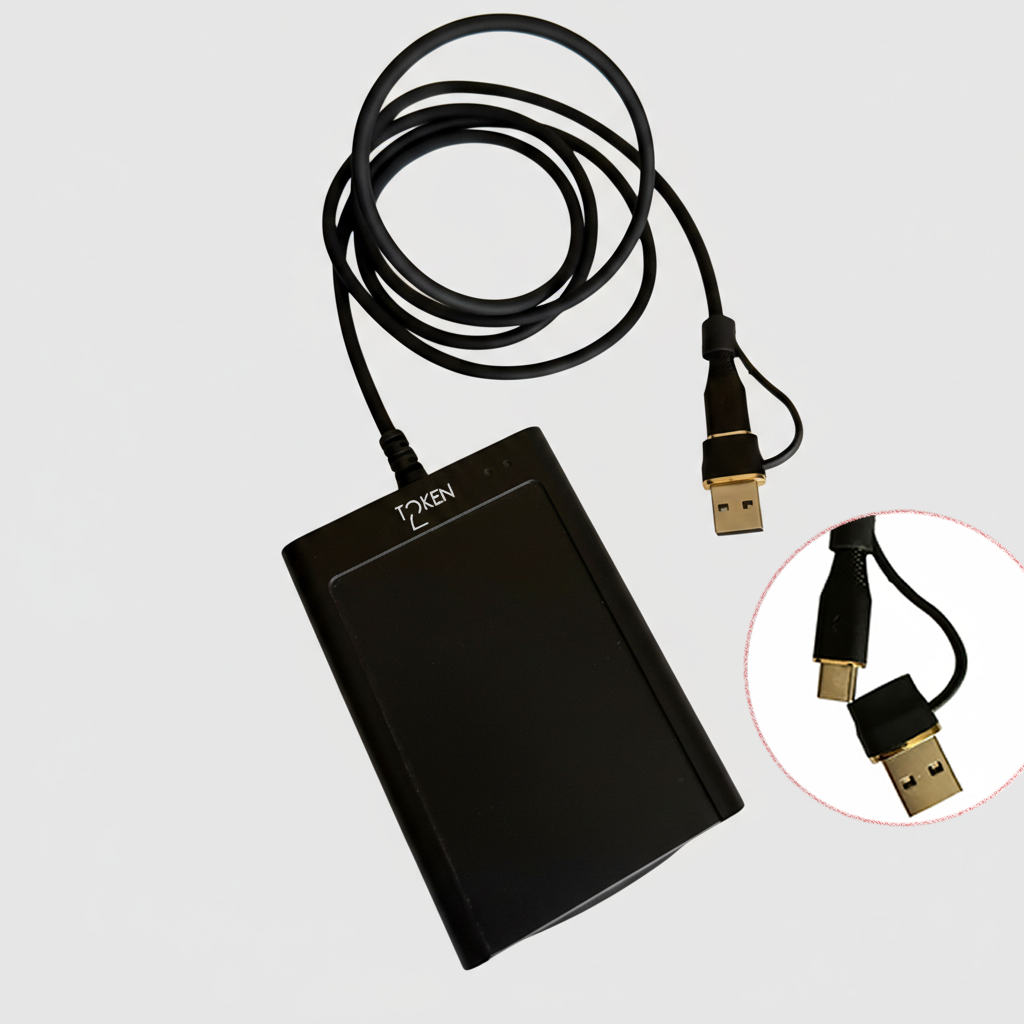

Ports USB-A + USB Type-C male connector (2 in 1 form-factor)
Host Communication Rate USB 2.0 full speed
Driver Protocol CCID

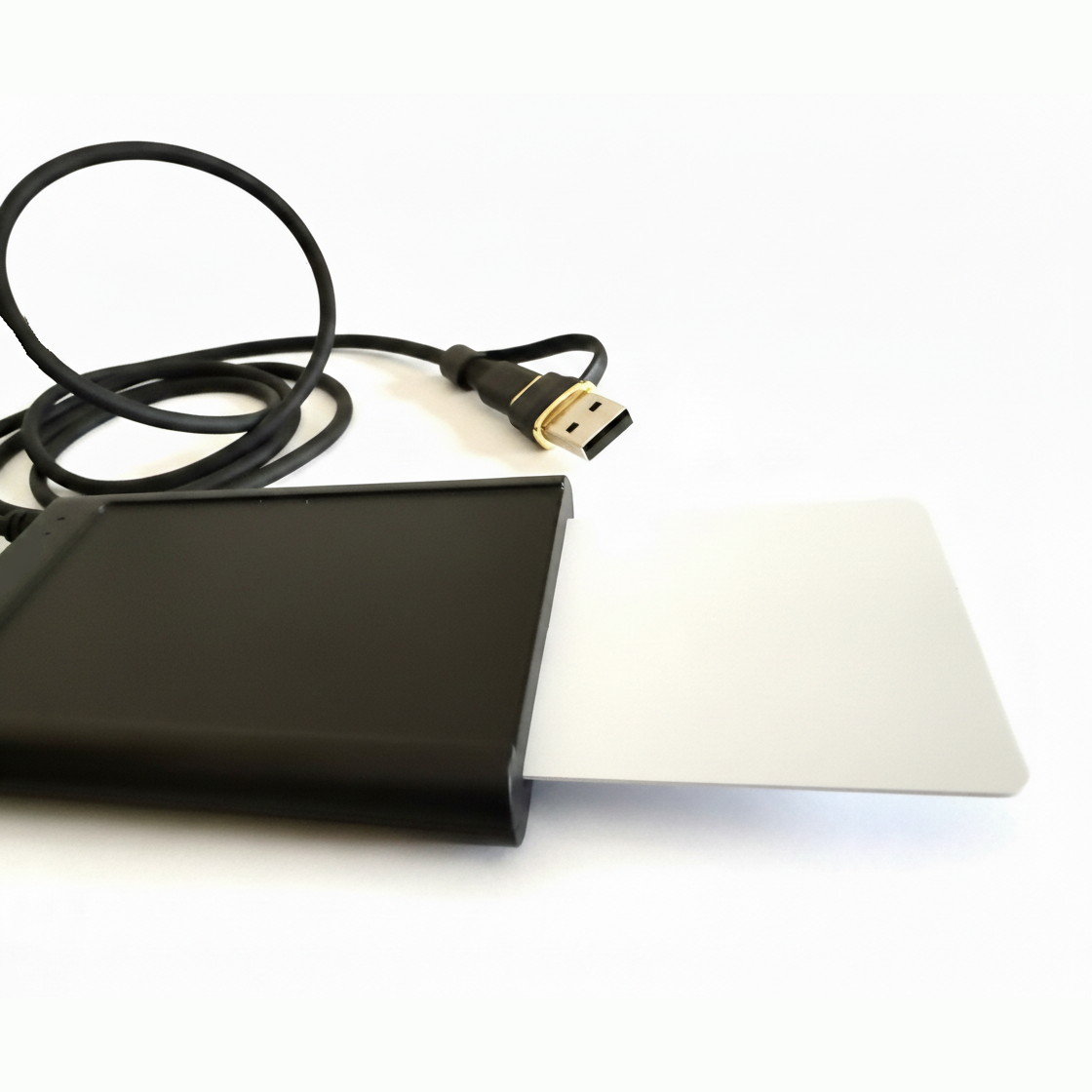

Card Standards Contact: ISO 7816 Class A / B / C
Contactless: ISO 14443 Type A / B
Socket Durability 100,000 insertion/removal cycles
Operating Temperature 0 ~ +60°C
Storage Temperature -10 ~ +70°C
Operating Humidity 10% – 90% (non-condensing)
